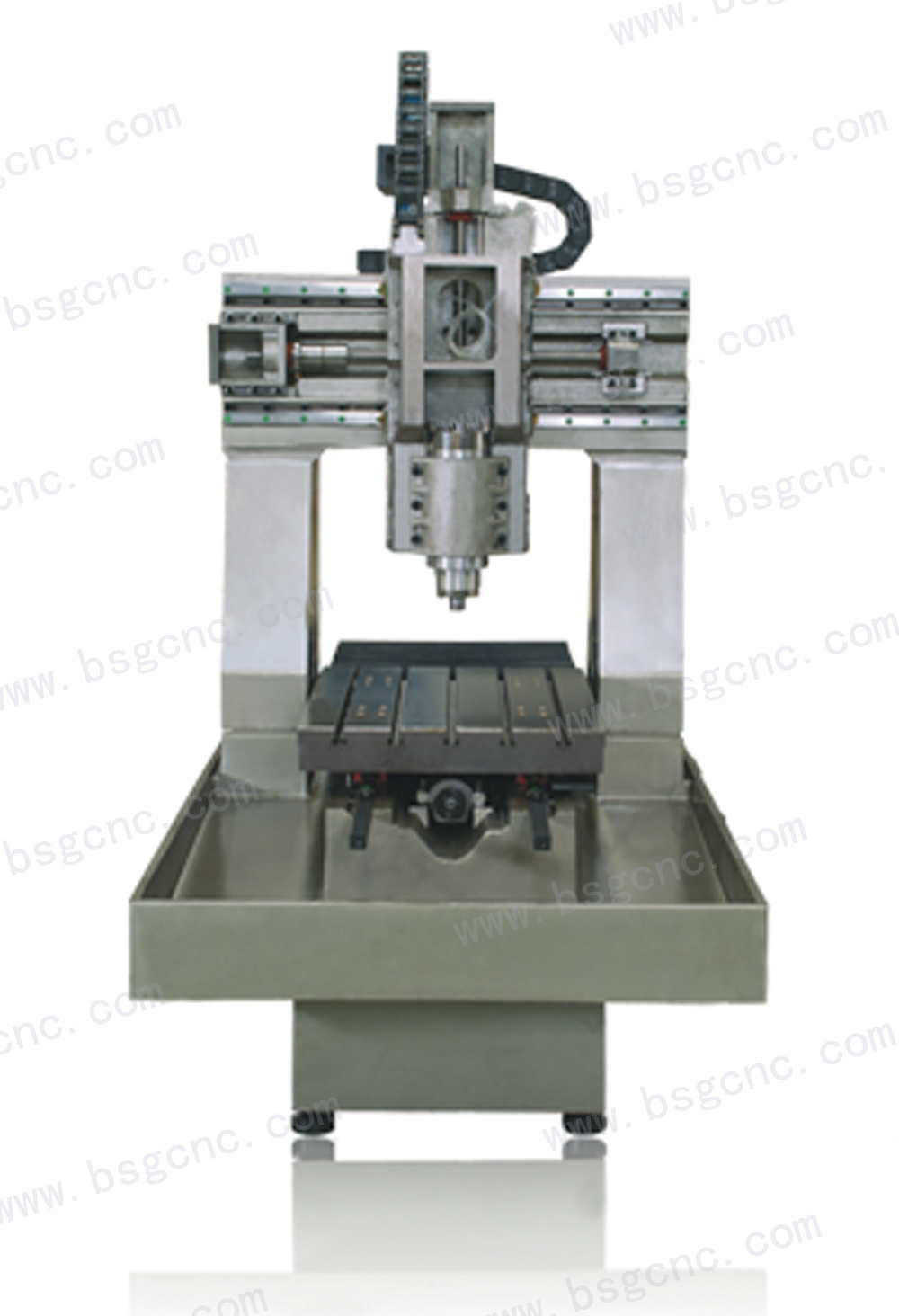

BSG 6050 CNC

Product in details

Jingzhou Mind Science and Technology Co.,Ltd.

General Info

Small footprint, high processing efficiency, the integrated operator panel BSG series engraving machine impress low bed and column beams one fixed gantry structure design to make the machine more stable, more rigidity, supporting high-performance Japan made servo motor, the Taiwan high-precision ball screw and high precision linear guides, high precision water-cooled spindle, powerful and easy to learn control systems, and advanced mechanical and electrical integration of advanced design concept, allowing users a smaller footprint, with processing a smooth, flexible, strong rigidity, high precision processing features. BSG series engraving machine has a small CNC milling capabilities, and wide range of engraving used in the injection mold, Die, metal dies, glass molds, high-frequency mode, Dripping mode, sole model various types of steel, iron, copper, aluminum, glass, hardwood and other metal and nonmetal materials, high-speed engraving process.

Applications

The main purpose and scope of this machine is a set of carving and milling functions as one of the CNC milling machine. Spindle speed, feed speed can be easily carved out in a variety of materials (such as: aluminum, copper, steel and other metal materials and various types of non-metallic materials) elaborate graphic text image and three-dimensional relief. This machine has a milling capacity, precision machining, so that production efficiency is greatly improved.

Apply to: sculpture, mold and other industries.

Jingzhou Mind Science and Technology Co.,Ltd.

Design & Feature

Casting: close bake GC40 type (GC275) applications
Dense baked GC40 type most suitable for homogeneous casting shallow casting thickness 10-15mm. Such material type compact structure, strength and proper hardness, low friction coefficient, and self-lubrication, so after surface hardening treatment, the widespread use of mutual friction on the metal surface caused by thermal shock on the workpiece, such as machine tool body humpback, countertops and cylinder liners, quite widely used.

Stable, rigid structure
Overall gantry structure greatly improves the strength and rigidity of the body
ANSYS finite element analysis method to minimize the vibration and thermal deformation of machine tools.
The overall casting high quality Meehanite cast iron (dense bake), and after annealing and the second tempering treatment to eliminate stress.
Z-axis nut holder and extension units for one ultra-rigid structure
Heavy body to ensure good processing rigid

Three-axis lead screw bearing used in all Japan, NSK

Jingzhou Mind Science and Technology Co.,Ltd.

High-speed, high precision machining efficiency
High-speed precision spindle, maximum speed up to 36000rpm
Guide to using precision linear guides, high guiding precision
Feed system uses a precision ball screw drive
Senior oil cooler (optional) in a timely manner spindle cooling
Pleasant operating environment, beautiful, attractive appearance of the protective design
Prevent cutting fluid mixed with lubricating oil in the oil-water separator structure design
Excellent chip design
Operating platform is safe and easy
Jingzhou Mind Science and Technology Co.,Ltd.
Electrically
Advanced and reliable CNC controller, Po-yuan, or on behalf of the NC system
With speed, high reliability, user-friendly, especially in the processing of applications DNC, CNC pretreatment procedures produced by the software of CAD / CAM / CAXA to filter out the unwanted of which seriously affect the processing speed and tool life point
Configure high-performance Yaskawa servo motor
Electrical components are made of domestic and foreign brand name products, reliable quality and stable performance
CNC system: Bao Yuan system, the new generation system

Product assurance testing
International quality testing equipment to ensure the best quality, machine tools and factory inspection:
The laser interferometer measurement system dynamic measurement of axial movement of the full stroke positioning accuracy and repeatability of positioning accuracy;
High-precision clubs detected servo axis in the plane motion of roundness;

The detection of the spindle dynamic balance of the school inspection machine to ensure the accuracy of the spindle dynamic equilibrium.


The main purpose and scope of
This machine is a set of carving and milling functions as one of the CNC milling machine. Spindle speed, feed speed can be easily carved out in a variety of materials (such as: aluminum, copper, steel and other metal materials and various types of non-metallic materials) elaborate graphic text image and three-dimensional relief. This machine has a milling capacity, precision machining, so that production efficiency is greatly improved.

Apply to: sculpture, mold and other industries

Taiwan's new generation of 10A CNC system
Jingzhou Mind Science and Technology Co.,Ltd.
Wide viewing angle, high brightness LCD screen
Support program FLOPPY & RS232 & 10/100 Mbps Ethernet input and output
Four-axis complete (Command) servo axis handwheel dedicated connector
Standard I / O 32-INPUT 32-the OUTPUT
12 Bit D / A voltage output spindle control
Will substantially reduce the controller size
New generation of standard controller functions in a small volume
The new generation of technology thin-film metal shrapnel milling the second panel.
Closest to the user's key definition and high reliability of the General Specifications: (SK3)
Metal of shrapnel buttons and anti-oil pollution corrosion resistance.
The new generation of standard keyboard design
35 key film metal shrapnel milling second panel
Two sets of knobs switch input (can be further packed in a group)

Independent INPUT / OUTPUT are served with their own planning
Jingzhou Mind Science and Technology Co.,Ltd.

Machine Precision

Parameter BSG 6050 CNC
Positional precision 0.01/300mm
Repeat position precision 0.005mm
Travel (X Y Z) 600x500x200mm
Table area 600x500mm
Max load of table 300kg
Max feeding height/width 180mm/580mm
Power of spindle 1.5KW
Range of spindle speed 500-36000pm
Spindle cooling system Water/Oil coolent
Spindle spring clamp ER20 (Ø3.175-12mm)
Max moving speed 8000mm/min
Driving system Servo motor from Japan
Numercial Control System Taiwan SYNTEC
Lubricate system Automatic
Power supply and Total power AC380V/4KVA
Gross weight 2000KG
Dimensions 1700*1400*1600mm
* Optional: Fagor control system; Automatic positioning system; Metrol/BT spindle
* Posittec reserves the right to modify the data.
